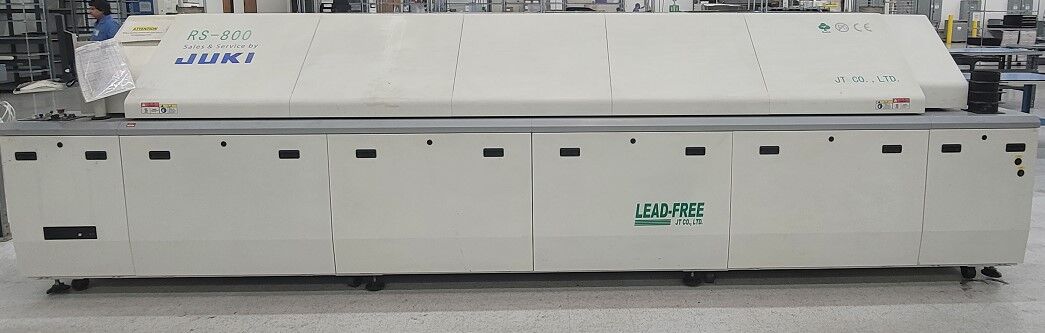

Juki RS-800 8-Zone Reflow Oven (2013)

Make: Juki
Model: RS-800
Year: 2013
Left to Right Flow
Edge Rail
Mesh Belt
8 Heating Zones
2 Cooling Zones
Total Heating Length: 3,120 mm Total Cooling Length: 800 mm
Temp Range Heating Zones: 20 – 300 °C
Separate Top and Bottom Temp Control
Blower Fan Top and Bottom
Automatic Chain Oiling system
Lead-Free
OS: Windows 7
Interfaces: Ethernet, USB, SMEAM, Cogiscan IFSNx / TTC
Power: 480V 3-Phase (Tranformers Available)
Dimensions: 5,380 x 1,320 x 1,505 mm
Weight: 2,400 kg
